PassyStoppy2

Hands-Free Experience - The Passy



BFT has designed and developed an exciting innovation for automated entries and exits � the Passy.

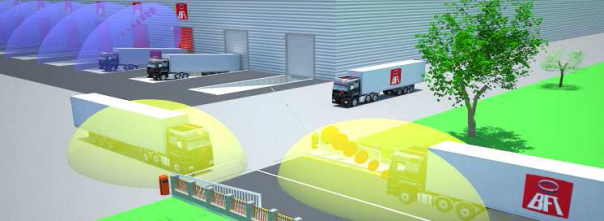

The Passy is a sophisticated system which allows for entries and exits into properties without pressing a button. This automated device operates in proximity to an antenna, and optimizes efficiency for special circumstances where a remote control would otherwise be inconvenient or even pose a threat to safety. For example, motor cycle access points and forklift truck entries/exits can be compromised by the attention required for pressing a remote control button. The Passy, however, would instantly activate the entry/exit procedure when in range of the antenna.

The Passy is an easy-to-install system and will not disrupt your surroundings in any way. It features protection against unauthorized copying of MITTO systems, and it is fully compatible with all BFT installations equipped with a CLONIX receiver.

The antenna triggering zone is adjustable and provides flexibility to the size of the entry/exit site, and a button transponder is available for manual control of the automation.

The Passy is combinable with a COMPASS access control system through the RTD CA 2048 receiver.

Passy Antenna Omni

  • Power supply features 14/18V dc/ac
  • The current input is typically 3W and goes up to a maximum of 6W
  • The band ranges from 2400 to 2483 Mhz
  • The operating temperature ranges from -20oC to 70oC
  • The protection rating is IP55

Passy Antenna Mono

  • Power supply features 14/18V dc/ac
  • The current input is typically 3W and goes up to a maximum of 6W
  • The band ranges from 2400 to 2483 Mhz
  • The operating temperature ranges from -20oC to 70oC
  • The protection rating is IP55

Passy Transponders

  • The Passy Transponder and Passy Transponder 100 are powered at 8dB
  • Both transponders operate in a temperature range of -10oC to 60oC
  • The frequency for both transponders is 433.92�0.1 MHz
