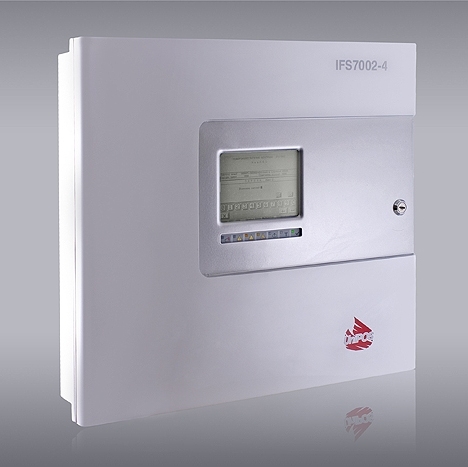

Interactive Fire Control Panel IFS7002 – four signal loops
PRODUCT DESCRIPTION
Interactive Fire Control Panel IFS7002 with four signal loops is designed to operate with addressable automatic fire detectors and manual call points. It controls addressable executive devices integrated into fire alarm loops. The addressable executive devices can be power supplied from the fire alarm loop or from a power loop. The panel has outputs provided for integration of external executive devices.
Technical data
|
Physical configuration:
Fire alarm zones
Fire alarm loops
Power Loop |
Monitored outputs: 2 pcs
Relay output for fire condition: 1 pc
Programmable relay output: 1 pc
Relay outputs for fault condition: 1 pc
Indications of registered events Power supply: 220/230V; 50Hz |

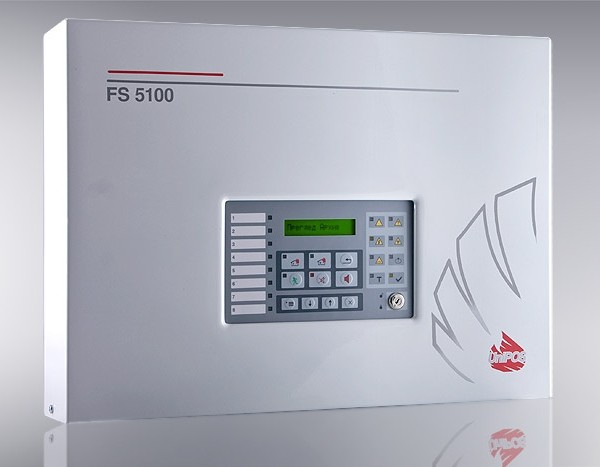

Conventional Fire Control Panel FS5100
PRODUCT DESCRIPTION
Fire Control Panel FS5100 is an up-to-date, high reliable, multifunctional and versatile unit, providing the user with unexpected potential in the design, installation and operation of conventional fire alarm systems
Technical data
|
Fire Alarm Lines
CONTROLLABLE OUTPUTS
RELAY OUTPUTS FOR FAULT CONDITIONS
RELAY OUTPUTS FOR FAULT CONDITIONS
INDICATIONS OF REGISTERED EVENTS |
ACCESS LEVELS TO CONTROL FUNCTIONS: 4 (in compliance with EN 54/2)
POWER SUPPLY BACKUP BATTERIES: 2 x 12 V / 7 Ah
OPERATION IN DUTY MODE UPON INTERRUPTED MAINS SUPPLY
CONSUMPTION ON BACKUP BATTERIES SUPPLY IN DUTY MODE AT 24 V
POWER SUPPLY TO EXTERNAL DEVICES |

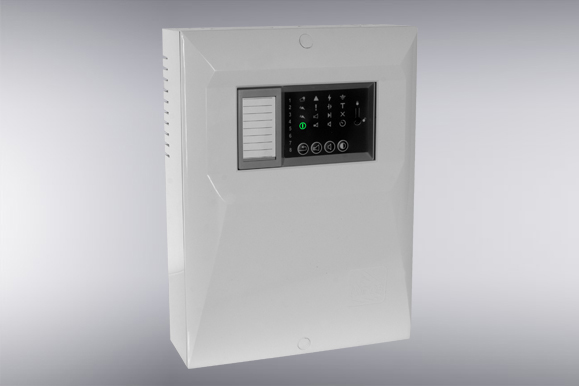

Conventional FIRE CONTROL PANEL FS 4000/2/4/6/8 ZONES
PRODUCT DESCRIPTION
Fire control panel FS4000 is designed to operate with conventional automatic fire detectors and manual call points. The panel has outputs provided for external executive devices.
The unit is produced in four versions:
2 fire alarm lines – FS4000/2
4 fire alarm lines – FS4000/4
6 fire alarm lines – FS4000/6
8 fire alarm lines – FS4000/8
Technical data
|
Fire alarm lines:
Current thresholds for:
Monitored outputs for fire condition:
Relay outputs for fire condition: |
Relay output for fault condition: Relay outputs for fire condition: Relay output for fault condition: Relay output for fault condition: Power supply: |

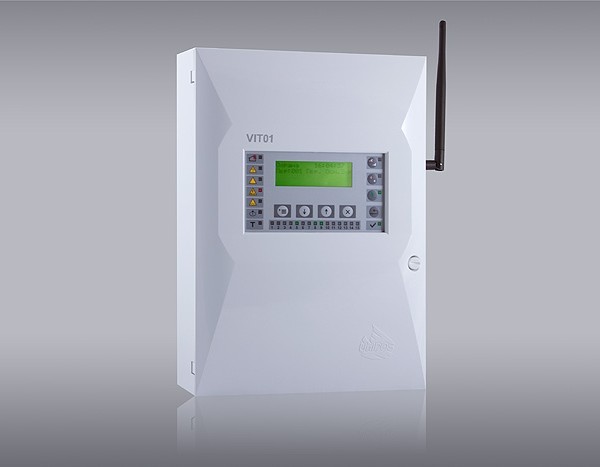

Wireless Fire Alarm Control Panel VIT 01
PRODUCT DESCRIPTION
Wireless Fire Alarm Control Panel VIT 01 is designed for fire security, management and control of fire alarm devices. The usage of radio communication between the control panel and the fire detectors makes it suitable for installation into premises, where laying cables is unwanted. The Control Panel is designed and produced by the requirements of ЕN 54-2/4 and EN 54-25.
The Control Panel operates together with:
– Automatic fire detectors VIT20, VIT30, VIT60.
– Manual call point VIT50.
– Router VIT02.
Basic functional characteristics:
– Setting up of the operating modes and parameters of fire detectors,
communication controllers and outputs through a built-in keyboard.
– Control for removed fire detector from its base, battery status.
– Control over the level of radio signal of the devices.
– Option for changing parameters of the fire detectors.
– LCD display for visualization of the operating modes of the system.
– LED indication for signalization of emergency and extreme situations
in the zones and within the whole system.
– Non-volatile archive memory, saving up to 4096 events, indicating
the time and the type of the event, and allowing a perfect analysis of
the actions of authorized personnel and the possible problems in the
process of fire safety of the premise.
– User friendly test modes for all the system components, providing a
total control over the condition of the protected premise.
– Test and choice of 16 different channels to establish radio
connection.
– Automatic restoration in fault condition, after the reason, that
caused the fault has been removed.
– Built-in serial interface RS232/RS485 for connection with personal
computer or other external devices.
– Compatible to different ways of installation designs, within the
range of the control panel’s resources.
Technical data
Maximum number of devices/zones: 32/15
Radio network parameters
– Frequency: 2,4 GHz
– Maximum number of devices included in the network: 32
– Maximum number of routers included in the network: 6
– Maximum number of devices connected directly to the Control Panel:
20
– Maximum number of fire detectors connected to the router: 14
– Maximum number of retransmissions of messages through the router: 5
Addressable smoke detector FD7130
The fire detector provides reliable early warning of a Fire condition responding to fixed threshold smoke concentration detected in the protected premises. The smoke sensitivity (low, middle or high) is in compliance with the European Standard EN54-7 and it is programmable by Fire Control Panel IFS7002.
The fire detector operates with an improved algorithm for self-compensation of the optic chamber contamination, signaling the necessity for dusting the chamber. It is done quickly due to the easy dismantling and assembling of the body cover.
The construction of the optic chamber and the technology used in the manufacturing of the screen provides high level protection against entering dust particles and insects and working under strong air flow.
Addressable fixed temperature heat detector FD7110
The fire detector provides reliable early warning of Fire condition
upon ambient temperature reaching a fixed temperature threshold.
The temperature class (A1S, A2S or BS) is in compliance with the
European Standard EN54-5 and is programmable by Fire Control Panel
IFS7002. The fire detector is suitable for premises with normal and
high ambient temperature, with possible sudden changes
-
Addressable rate of rise heat detector FD7120
The fire detector provides reliable early warning of a Fire condition upon reaching a rate of rise of the temperature or fixed temperature threshold in the protected premises. The temperature class (A1R, A2R or BR) is in compliance with the European Standard EN54-5 and is programmable by Fire Control Panel IFS7002. The fire detector is suitable for premises with normal ambient temperature, without possible sudden changes.
Addressable combined detector FD7160
The fire detector provides reliable warning of a Fire condition responding to fixed threshold smoke concentration or rate of rise or the temperature or fixed temperature threshold detected in the protected premises.
It combines the advantages of a type FD7120 and a type FD7130 and it is an attractive option due to decreased expenses for supply and installation.The temperature class (A1R, A2R or BR) and the smoke sensitivity (low, middle or high) are programmable by Fire Control Panel IFS7002 and they are in compliance with the European Standard EN54-5 and EN54-7.
-
The manual call point FD7150 is designed for indoor installation as a component of an Addressable Fire Alarm System IFS7000 series.The unit is compatible with the requirements of the European Standard EN54-11:2001/A1:2005, EN54-17:2005/AC:2007.
The FD7150 manual call point has a built-in short circuit isolator for the signal loop. The communication between the addressable manual call point and the Panel is based on a private UniTalk protocol. -

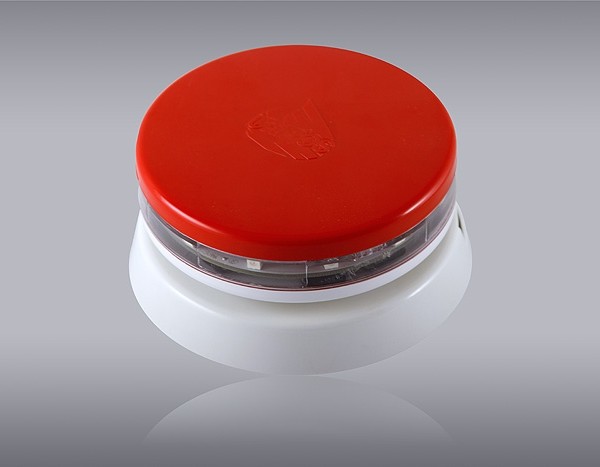

Addressable sounder FD7204
Addressable sounder beacon device – base with built-in short-circuit isolator and accumulator battery, is used for sound and flash indication on registered events by the Interactive fire alarm panel IFS7002. The FD7204 is used for indoor applications.
Conventional Smoke detector FD8030
The fire detector provides reliable early warning of a Fire condition responding to fixed threshold smoke concentration detected in the protected premises.
The smoke sensitivity is factory preset in accordance with European Standard EN54-7.
The fire detector is controlled by a microprocessor. FD8030 operates with an improved algorithm for self-compensation of the optic chamber contamination, signaling the necessity for dusting the chamber. It is done quickly due to the easy dismantling and assembling of the body cover.
The construction of the optic chamber and the new technology used in the manufacturing of the screen provides high level protection against entering dust particles and insect and working under strong air flow.

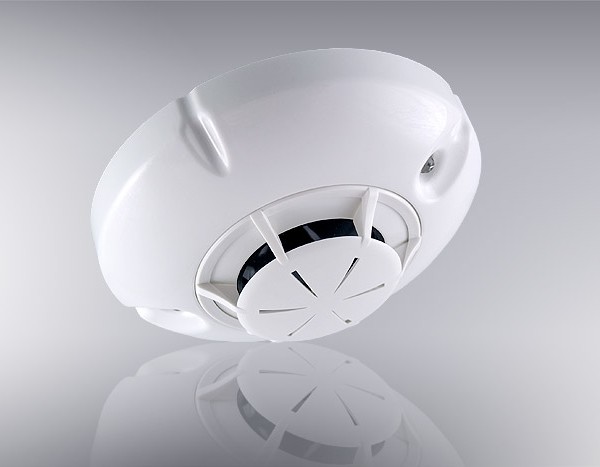

Conventional Fixed temerature heat detector FD8010
The fire detector provides reliable early warning of a Fire condition upon ambient temperature reaching a fixed temperature threshold.
It is available in two versions (A2S or BS) depending on the temperature threshold in accordance with the European Standard EN54-5.
The fire detector is suitable for premises with normal or high ambient temperature, with possible sudden changes.
Conventional Rate of rise heat detector FD8020
The fire detector provides reliable early warning of a Fire condition upon reaching a rate of rise of the temperature or fixed temperature threshold in the protected premises.
It is available in two versions (A2R or BR) depending on the temperature threshold in accordance with the European Standard EN54-5. The fire detector is suitable for premises with normal ambient temperature, without possible sudden changes.-

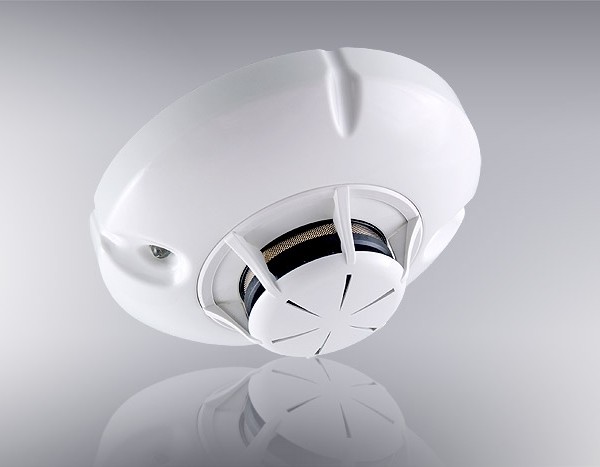

Conventional Combined detector FD8060
The fire detector provides reliable early warning of a Fire condition responding to fixed threshold smoke concentration or rate of rise of the temperature or fixed temperature threshold detected in the protected premises.
It combines the advantages of a type FD8020 and a type FD8030 and it is an attractive option due to decreased expenses for supply and installation.
The fire detector complies with the requirements of the European Standard EN54-5 (temperature class A2R) and EN54-7
conventional Manual Call Point FD3050
FD3050 Manual Call Point – It is designed to release a signal for a Fire condition to the Fire Control Panel upon manual activation by breaking the glass on the place, signed with arrows. The light indication for activating the manual call point is provided by a red LED. There is a possibility for testing by a special key.
It satisfies the requirements of the European Standard EN54-11 for a type A manual call point.

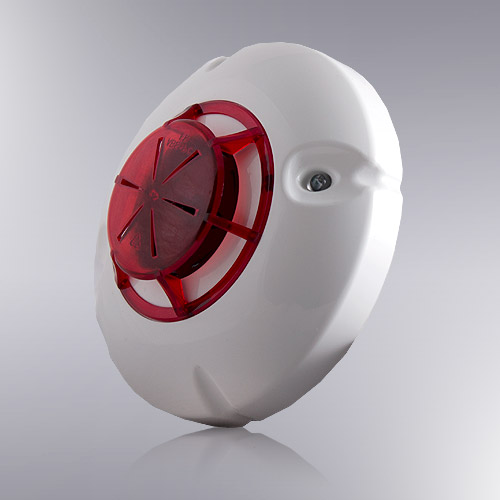

OPTICAL FLAME FIRE DETECTOR FD8040
Optical flame fire detector FD 8040 is designed to provide early warning of a fire condition responding to open flame. The fire detector reacts within the light spectrum of the flame and has maximum sensitivity of the infrared range. The operation principle is based on the reception of flame emissions with their typical flicker frequency within the whole spectrum range. The infrared sensor signal – amplified, filtered and shaped is being sent to the time delay circuit. If the flame impact has decreased during the time delay , the fire detector dos not activate.
The fire detector consists of printed board, mounted in a plastic body with optical filter and bottom side. The flat point pivot screw (optional) prevents the fire detector of unauthorized removal. A 2 mm tip screwdriver is required for locking and unlocking. The two red LEDs of the fire detector are indicating fire condition, providing 360 angle visibility. It is recommended that the fire detectors are mounted in premises, where a possible development of fire condition is supplemented by flame. Avoid mountong in premises with flickering lights. The fire detectors shall be mounted on the ceiling in a way, that do not alow explosure to direct sunlight.

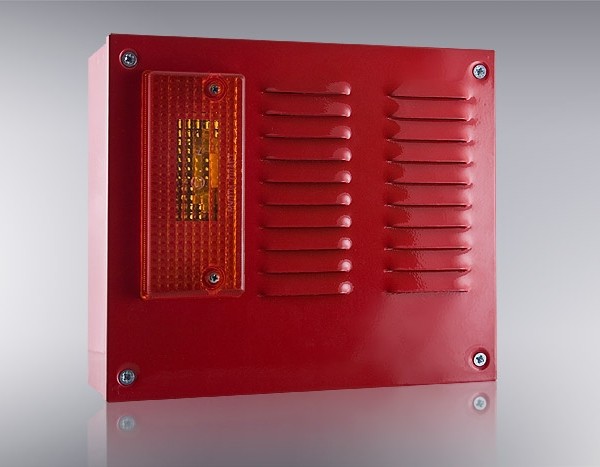

Outdoor sounder SB 112F
SB 112F is designed to signalize for fire sound signal in fire alarm systems. The sounder is compatible with fire alarm panels, which provide in alarm mode output 24 V.
SB 112F is high frequency armored sounder. The box is produced from steel sheet with thickness 1 mm with polymer covering.
The sounder is complete with lamp 24V/5W, which flash with frequency 1.5 Hz in alarm mode.
SB 112F works good in wide range of supplying voltage.
Conventional indoor sounder 8204C
The conventional indoor sounder 8204С is applicable for sound and LED indication of events registered in Fire Alarm Systems. 8204C is compliant with EN54-3.

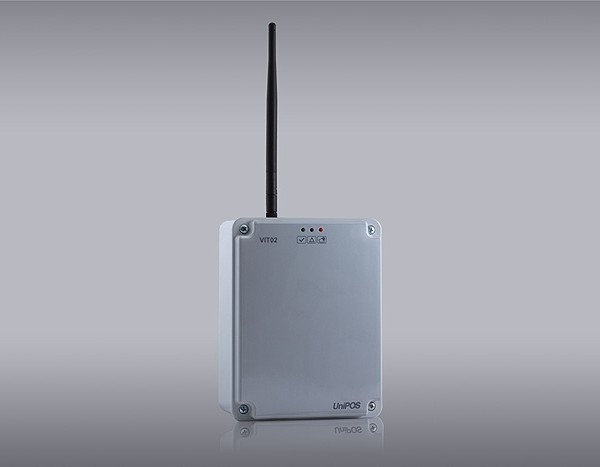

Router VIT02
Router VIT02 performs the functions of a repeater (retransmitting the radio signals in the network) and controls conventional sounders or fire protection and fire alarm equipment, through a programmable fire relay output.
It is power supplied by alternating voltage 220 V/50 Hz and has a space for backup battery (not included), supporting its operation in case of fault in the external power supply.
-

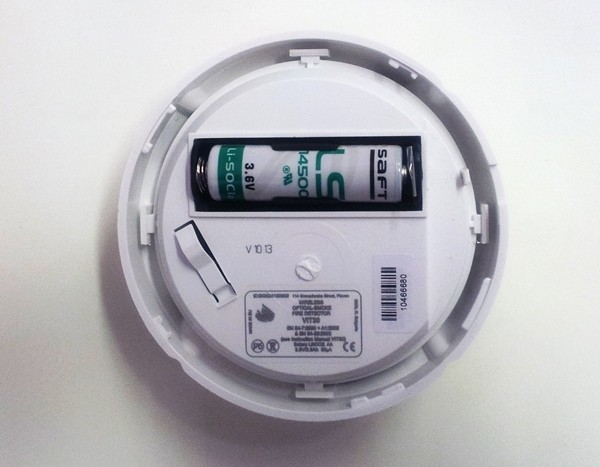

Wireless optical-smoke fire detector VIT30
The fire decetor provides a reliable early warning of a fire condition, responding to fixed threshold smoke cocentration detected in the protected premises. The smote sensitivity (low, middle or high) are programmable by the fire control panel VIT01.
Wireless Heat fire detector VIT20
The fire detector provides a reliable early warning of a fire condition upon reaching a rate of rise of the temperature or fixed temperature threshold in the protected premise. The temperature class is in compliance with the European Standard EN54-5 and is programmable by the fire control panel VIT01:
– A1R, A2R – for rate of rise heat fire detector. Activated upon reaching a rate of rise of the temperature or fixed temperature
– The principal of functioning of its thermal part is based on the ohmic resistance alteration in the thermistors as a result of the ambient temperature change.

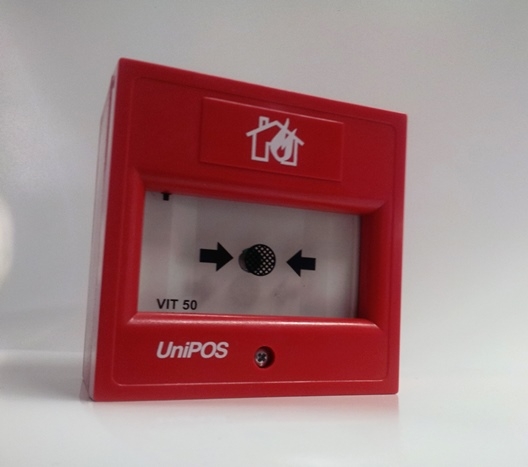

Wireless manual call point VIT50
The manual call point is designed to release a signal for a Fire condition to the VIT01 panel upon manual activation by elastic element (re-enable glass) on the place assigned by the arrows. The light indication for activation of the manual call point is provided by a red LED.
Communication between the VIT50 and the other VIT components is based on high frequency radio emissions.
Wireless combined fire detector VIT60
The fire detector provides a reliable early warning of a fire condition, responding to fixed threshold smoke concentration or rate of rise of the temperature, or fixed temperature threshold detected in the protected premises. It combines the advantages of a type VIT30 and a type VIT20 and it is an attractive option due to decreased expenses for supply and installation. The temperature class (A1R, A2R) and the smoke sensitivity (low, middle or high) are programmable by the fire control panel VIT01 and they are in accordance with the European standard EN54-5 and EN54-7.
The principal of functioning of its thermal part is based on the ohmic resistance alteration in the thermistors as a result of the ambient temperature change.
The principal, of the optical chamber operation, is based on the dispersion of infrared rays from the smoke particles, trapped in the optical chamber.

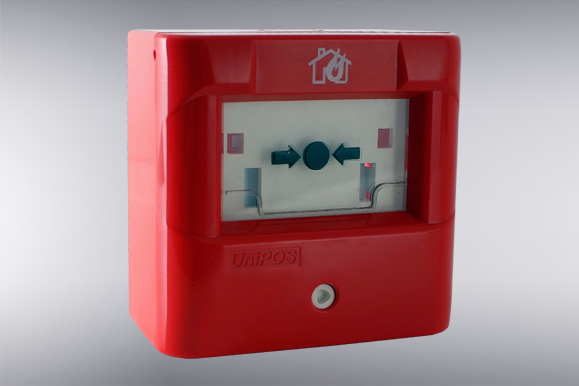

Addressable Manual call point FD7150
The LED indicator provides the following status
information:
– Duty
mode – the LED ashes shortly on 16s
period;
– Alarm
condition – the LED ashes with
continuous light;
– Activated
short circuit isolator – the LED
ashes shortly on 1s period.
