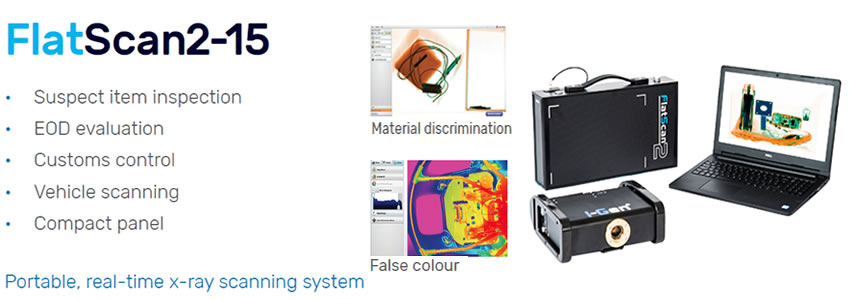

FlatScanning system

FlatScan2-15 is a lightweight, portable, battery powered x-ray scanning system designed in co-operation with first responders and EOD teams to meet the needs of the field operative.

Quick and simple to deploy, the system produces high quality real-time x-ray images for rapid and accurate decision making.

The detector panel is positioned behind the target; the generator is placed in front. The scan is activated from the laptop imaging station.

The 297mm x 206mm imaging area of the FlatScan2-15 enables the operator to scan typical bags and packages in a single scan.

Penetrating up to 34mm steel at 120kV the system produces sub-millimetre resolution images.

A range of sophisticated image processing functions, including materials discrimination, pan, zoom, DeepFocus™, 3D Emboss, measurement and annotation, coupled with high quality images enable the operator to interpret the image quickly and accurately.

The software can also communicate the image on screen to a remote command centre and save images in JPEG and other common file formats.
